Equipped with advanced blade-tip compensation hardware to ensure accurate cutting pressure and blade depth across the entire media surface. It reduces material waste and improves corner precision.

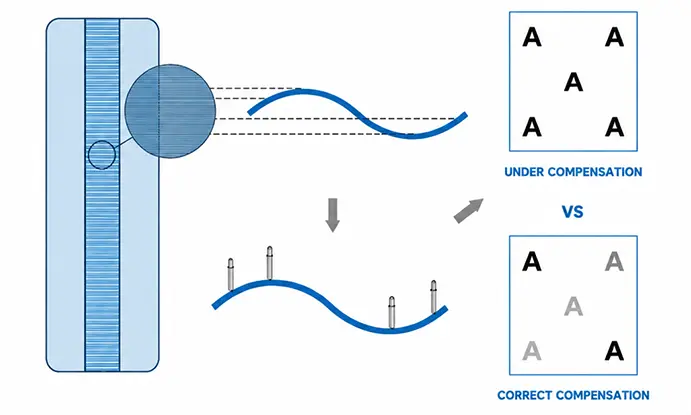

High-precision grating positioning system delivers stable and repeatable cutting paths. By continuously tracking the cutter position, it eliminates cumulative errors over long runs.

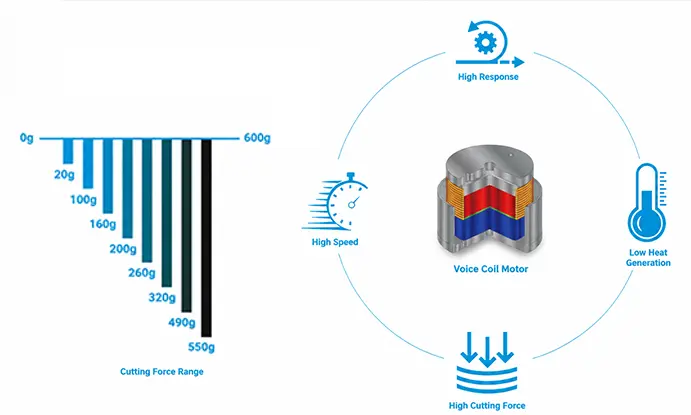

The voice coil motor provides fast response, wide cutting-force range, and quiet operation. It supports delicate cuts on thin films as well as deeper cuts on thicker materials.
Optimized mechanical structure and motion control algorithms work together to produce clean edges, sharp corners, and smooth curves without burrs or deformation.
Built-in anti-static design protects both the electronics and sensitive film materials. It ensures stable performance even in dry or high-static environments.
Industrial-grade AC servo motors deliver accurate XY motion with fast acceleration and high torque. The closed-loop servo system maintains precision over long production runs.

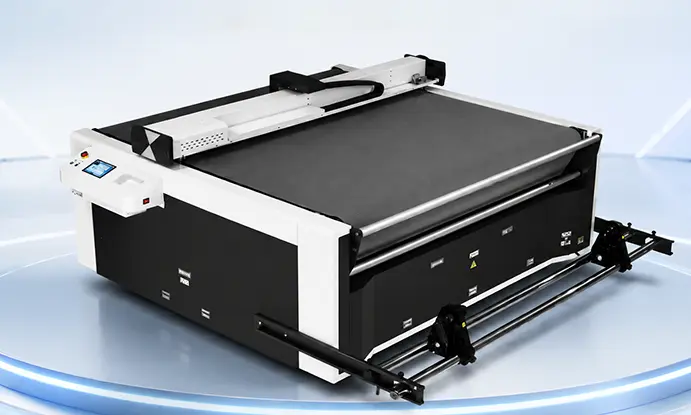

The integrated vacuum table holds materials flat during cutting, preventing wrinkles, shifting, or lifting. It is especially effective for large, thin, or flexible films.
| Parameter | Specification |
|---|---|
| Maximum Cutting Width (9-axis) | 1565 mm |
| Maximum Cutting Length (7-axis) | 800 mm (pure cut section build) |
| Applicable Media Thickness | 0.05-11 mm |
| Maximum Cutting Speed | 800 mm/s |
| Maximum Cutting Force | 600 gf / 5.8 N (X-axis) |
| Standard Port | USB |
| File Format | HPGL, PLT |
| Cutter Holder | 1 Cutter Holder |
| Power Input | AC 110-220V, 50/60Hz |
| Power Consumption | 3.2 kW (including Vacuum Pump 2.2 kW) |
| Drive System | AC Servo Motor |
| Operating System | Windows 11 / 10 / 8 / 7 |
| CAD/CAM Software Compatibility | SignWorkPro / Plot / CADlink, etc. |
| Media Fixing Method | Vacuum Table |
| Machine Dimensions (W × L × H) | 2136 × 1860 × 1080 mm |
| Package Dimensions (W × L × H) | 2300 × 1900 × 1270 mm |
| Gross / Net Weight | 500 kg / 420 kg |
