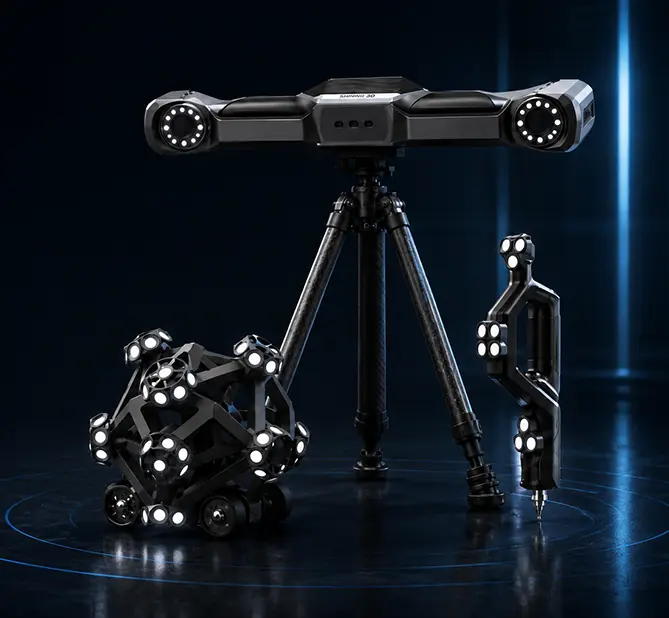

3D TRAK NOVA+

DUAL-MODE WIRELESS TRACKING LASER 3D SCANNING SYSTEM

High-Precision Optical Tracking Scan: Marker-free, metrology-grade scanning with a lightweight scan head design for outdoors and complex objects.
Large-Area Handheld Laser Scanning: Wide-area, long-range scanning for rapid digitization of complete vehicles and large objects with minimal markers.

Parameter	Value
Scanning Mode	High-Speed Scanning	62-crossed blue laser lines
	Fine Scanning	25-parallel blue laser lines
	Deep Scanning	1 infrared laser line
Maximum Accuracy	0.020 mm (Scanner Only)
Maximum Accuracy	0.025 mm (With Tracker)
Single-Station Tracking Distance	4.5 m
Volumetric Accuracy	0.058 mm (Tracker Distance ≤ 3.5 m)
Volumetric Accuracy	0.070 mm (Tracker Distance ≤ 4.5 m)
Volumetric Accuracy (With Photogrammetry)	0.044 mm + 0.012 mm/m
Maximum Scanning Speed	7,600,000 measurements/s
Maximum Scan Area	550 mm × 600 mm
Depth of Field	400 mm
Device Dimensions	Scanner: 239 mm × 191 mm × 232 mm
Device Dimensions	Tracker: 580 mm × 119 mm × 87 mm
Device Weight	Scanner: 1.3 kg (Without Battery)
Device Weight	Tracker: 1.6 kg (Without Battery)
