3D SCAN T57

3D SCAN T57

Metrology-Grade Wireless Handheld Blue Laser 3D Scanner

METROLOGY-GRADE WIRELESS HANDHELD BLUE LASER 3D SCANNER

Multi-Mode Blue Laser Scanning
Equipped with 50 high-speed blue lines and infrared structured light. Supports high-speed, detailed, and marker-free scanning for diverse applications.
Stable High-Precision Measurement
Featuring optical self-positioning technology, it delivers up to 0.02 mm accuracy and 3 million measurements per second without external tracking.
Lightweight Wireless Operation
Built-in battery enables wireless operation; onsite field calibration and strong adaptability ensure reliable scanning on reflective and dark surfaces.

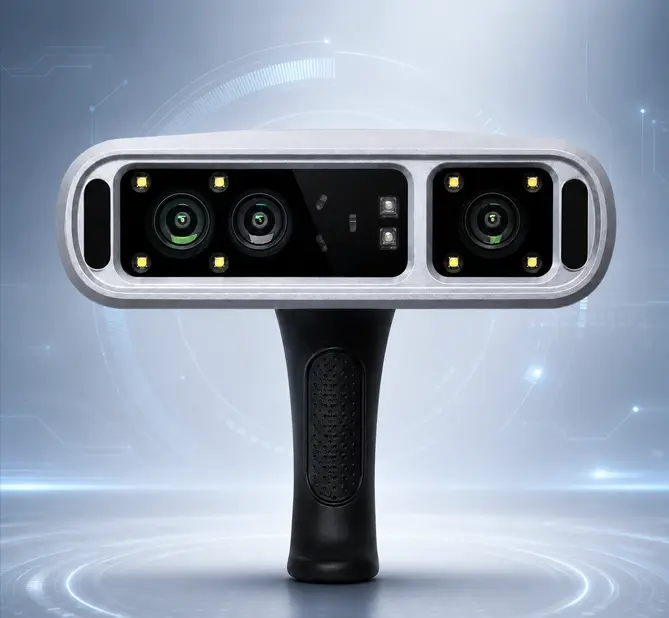

3D SCAN T57 Scanner

Technical Specifications

Parameter Value
Weight 0.5 kg
Dimensions 170 × 130 × 80 mm
Scan Rate 3,000,000 measurements/sec
Single Scan Area 650 mm × 550 mm (blue laser) / 1400 mm × 1200 mm (infrared)
Light Source 50 crossed blue laser lines + 7 parallel blue laser lines + Infrared light
Laser Class Class I Laser (Eye Safe)
Resolution Up to 0.02 mm
Accuracy Up to 0.02 mm
Volume Accuracy A 0.02 mm + 0.05 mm/m
Volume Accuracy B (with Photogrammetry) 0.02 mm + 0.025 mm/m
Base Distance 100 mm - 600 mm (blue laser) / 160 mm - 1400 mm (infrared)
Splicing Method Frame Markers / Feature Alignment / Texture Alignment / Hybrid Alignment
Recommended Part Size Range 0.1m - 5m
Software UltraScan 3D
Software Output .ply, .stl, .obj, .asc; Compatible with 3D mainstream metrology and CAD software: Geomagic, SolidWorks, CATIA, NX, AutoCAD, Inventor, Maya, PolyWorks, etc.
Data Transmission Interface USB 3.0
Operating Temperature Range -10°C to 40°C
Operating Humidity Range 10% to 90% RH (Non-condensing)
Computer Requirements OS: Windows 10/11, 64-bit
Memory: ≥ 16 GB (32 GB or above recommended)
Storage: ≥ 2 GB
Processor: Intel Core i5-1135G7 or above
